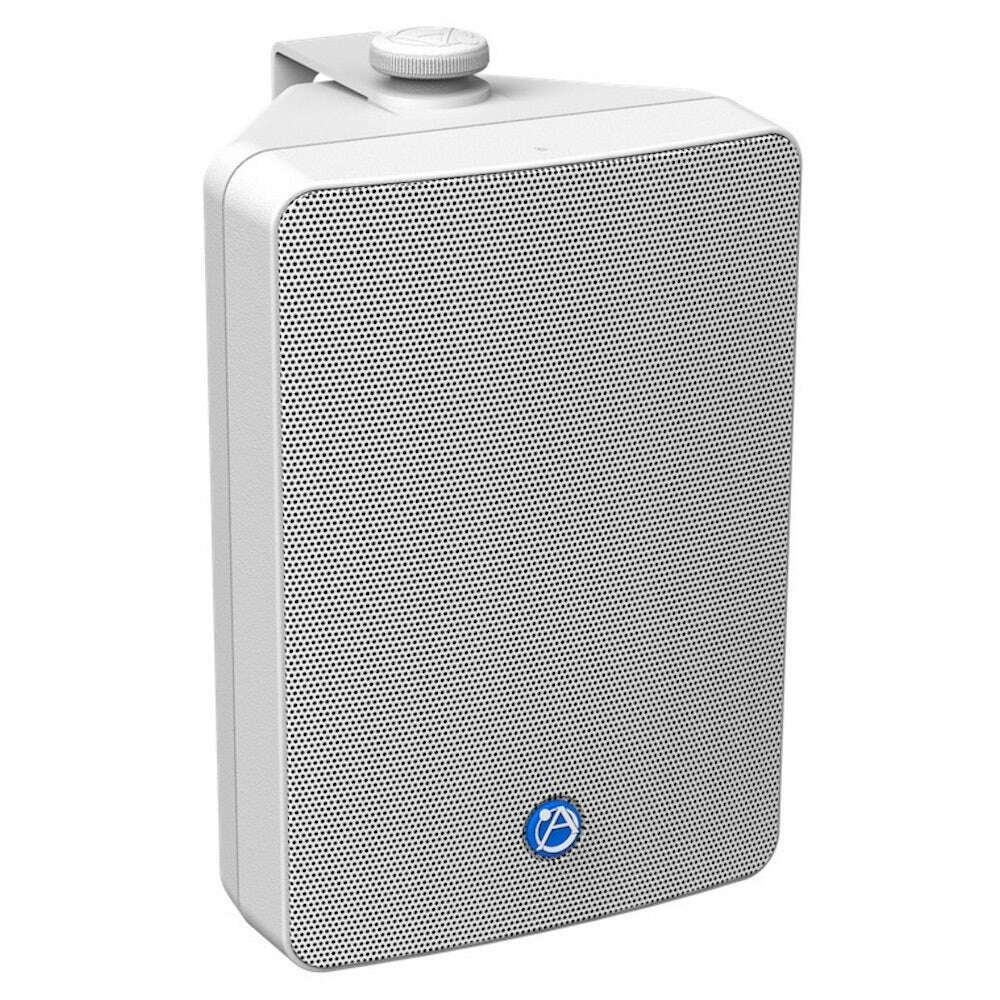

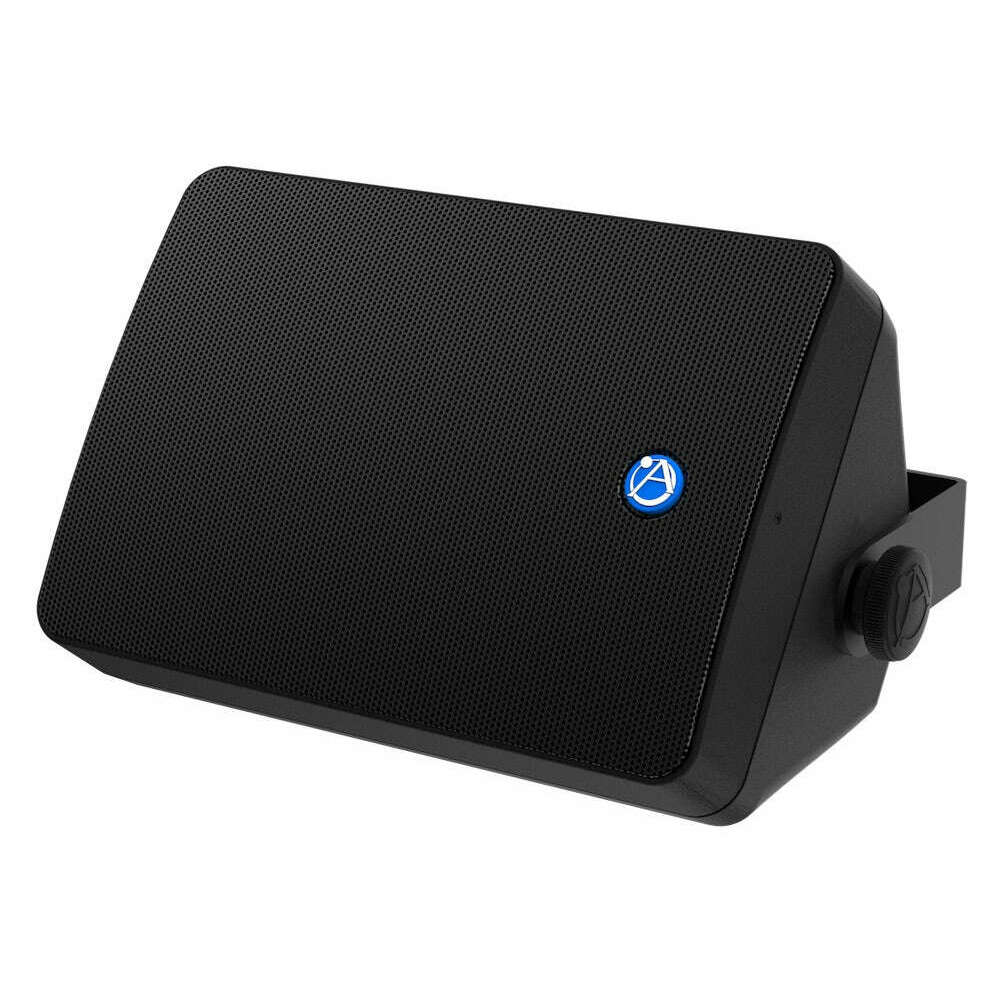

AtlasIED SM63T 6.5" 2-Way All Weather Speaker with 32-Watt 70V/100V Transformer - Black or White (Pair)

All AtlasIED Strategy Series speaker systems are designed to provide high fidelity, long life, and installation convenience for commercial and residential applications. Because of their weather-resistant properties, they are perfect for use indoors or outdoors. The AtlasIED SM63T includes a 6.5" woofer and 1" tweeter, an integrated 70.7V / 100V transformer and 8�� bypass for direct-coupled applications.

Environment-resistant SM Series speaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and FerroFluid cooled, titanium dome high frequency device. Vocal and musical clarity is optimized by the mathematically conceived, advanced design of the AtlasIED TRX Control WaveGuide high frequency director. This design of the AtlasIED SM51T provides smooth, even sound coverage (90��H x 90��V). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the AtlasIED PolyGuard protection circuit. The SM63T includes an internally mounted 30 Watt 70.7V/100V line matching transformer with 8�� bypass and screwdriver adjustable tap selection for use in distributed sound applications.

To withstand the harshest environments, the new Strategy Series SM63T surface mount speakers are constructed of weather resistant materials: UV-resistant, talc impregnated, polypropylene injection molded cabinets; polypropylene woofer cones; powder coated aluminum grilles and all brass hardware.

The Strategy Series speaker systems include a versatile yet simple C-bracket designed to provide easy vertical or horizontal installation on just about any surface. Ensure that the chosen fixing point is strong enough to support the SM52T. Care should also be taken to prevent the SM63T from being exposed to direct precipitation.

A 5/8"-27 threaded hole is provided on the C-bracket to allow the SM63T series speaker to be mounted on any AtlasIED microphone stand for near-field live sound applications. 2-3/8" OC brass inserts are also provided on the rear of the SM63T to accommodate an OMNIMOUNT bracket. All inserts for mounting knobs are standard 1/4"-20 to allow easy substitution of off-the-shelf vandal-proof torx? head or "one-way" hardware (not sold by AtlasIED).

Input connectors include a two pole barrier strip with wire capture "caps" capable of accepting up to (2) #14AWG cable. 4, 8, 16, 32-watt and 8�� bypass taps are screwdriver selectable via a sealed switch located near the input section on the rear of the cabinet. A tongue-in-groove cover with rubber wire exit grommet is provided to protect the input connections and transformer switch assembly from moisture. Can be painted to accommodate any architectural considerations.

Available in black or white. Sold and shipped as a pair.

Warranty: 5 Years

Features

• 1" Ferrofluid? Cooled Dome Tweeter
• 100HR Salt Spray Test Per ASTM B117
• All ?"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
• Atlas Sound POLYGUARD? High Frequency Circuit Diverts Damaging Transient Signals to Protect the Tweeter
• Available in Black or White
• Color Matched Heavy-Duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
• Compact, Two-Way Loudspeaker Systems for Exceptional Performance in Sound Reinforcement Systems
• Five-Year Warranty
• Highly Efficient 6.5" Polypropylene Woofer
• Weather-Resistant Construction for Year-Round Indoor or Outdoor Use: UV-Resistant Talc Impregnated Polypropylene, Injection Moulded, Weatherproof Enclosure Powder Coated Aluminium Grilles and All Brass Hardware Inserts
• OMNIMOUNT? Compatible

Specifications

• Speaker Type: Surface Mount
• Sensitivity: 88dB
• Power Taps: 4, 8, 16, 32 & 8�� bypass
• Frequency Response: 104Hz - 20kHz
• Height: 10.27" (26.09 cm)
• Depth: 6.68" (16.97 cm)
• Width: 7.24" (18.39 cm)
• Shipping Weight: 6.55 lbs (2.97 kgs)
