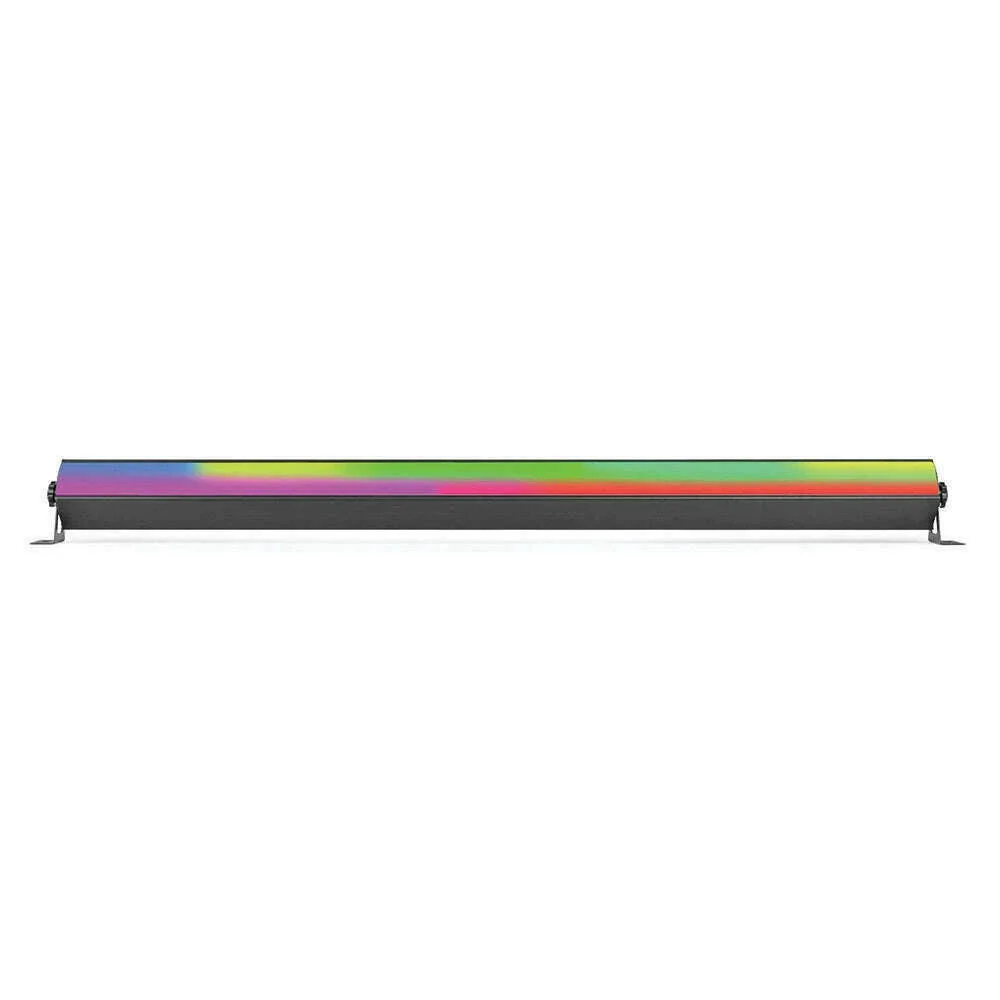

BeamZ LCB224 LED Bar 224x SMD RGB 3 in 1

The Beamz LCB224 is an LED bar with 224 pieces of SMD RGB LEDs. The LEDs are divided into 16 separately controllable sections. Each section has its own RGB colour setting in DMX mode. While using the fixture in the stand-alone mode you have access to pre-programmed shows that run automatically. This includes sound-activated mode and you can also pick from pre-programmed automatic programs or create your own mixture of colours in RGB mode. The extra IEC output enables you to simply link the power of multiple units together into a single socket.

The LCB224 is a 3-in-1 LED lighting fixture with Red, Green, Blue Led Colours. When used in DMX mode via 3-pin XLR, the LCB224 provides you with 3, 5, 8, 24, 48, 53 DMX Channels to work with. Also included is a Flash mode with a 1 �C 19Hz flash rate per second. The LCB224 also includes Automatic programs, DMX, Manual and Master/Slave. The LCB224 also uses Convection Colling technology that stabilizes the temperature of the unit. Additional accessories included are a Mounting bracket and a Power cable.

Warranty: 12 Months

Features

• 224x SMD RGB LEDs
• 3, 5, 8, 24, 48 or 53 DMX channels
• 16 Sections controllable
• DMX and Stand-alone mode
• Master/slave function
• Sound activated with adjustable sensitivity
• 54 Built-in effects
• 3 Pre-programmed shows
• 25 Colour pre-sets
• 24 Effect patterns
• DMX in/output via 3-pin XLR
• IEC-connector input/output

Specifications

• Supplied features:?Master/Slave mode
• Light source:?3-in-1 LED
• LED colours:?Red, Green, Blue
• Quantity of LEDs:?224
• Beam angle:?90��
• Flash rate per second:?1 �C 19Hz
• DMX channels:?3, 5, 8, 24, 48, 53
• DMX connector:?3-pin XLR
• Modes:?Automatic programs, DMX, Manual, Master/Slave
• IP rating:?IP20
• Cooling:?Convection
• Display:?LED
• Power plug:?IEC
• Power consumption:?0.75 �C 0.41A
• Power supply:?100-240VAC 50/60Hz
• Dimensions (L x W x H):?1000 x 65 x 90mm
• Weight:?1,65
• Accessories:?Mounting bracket, Power cable
