EWI PMM-1601 Combo 240v Power/Neutrik XLR Signal Cable - 2.5, 5, 10, 15 & 20 Metre

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    We have these made to order so please allow up to 2 working weeks when ordering. Instead of the IEC connector at the equipment end, we can have them made up with either a powerCON?or standard 240V socket.

    Prices are:

    2.5 metre @ $149
    5 metre @ $159
    10 metre @ $189
    15 metre @ $219
    20 metre @ $249

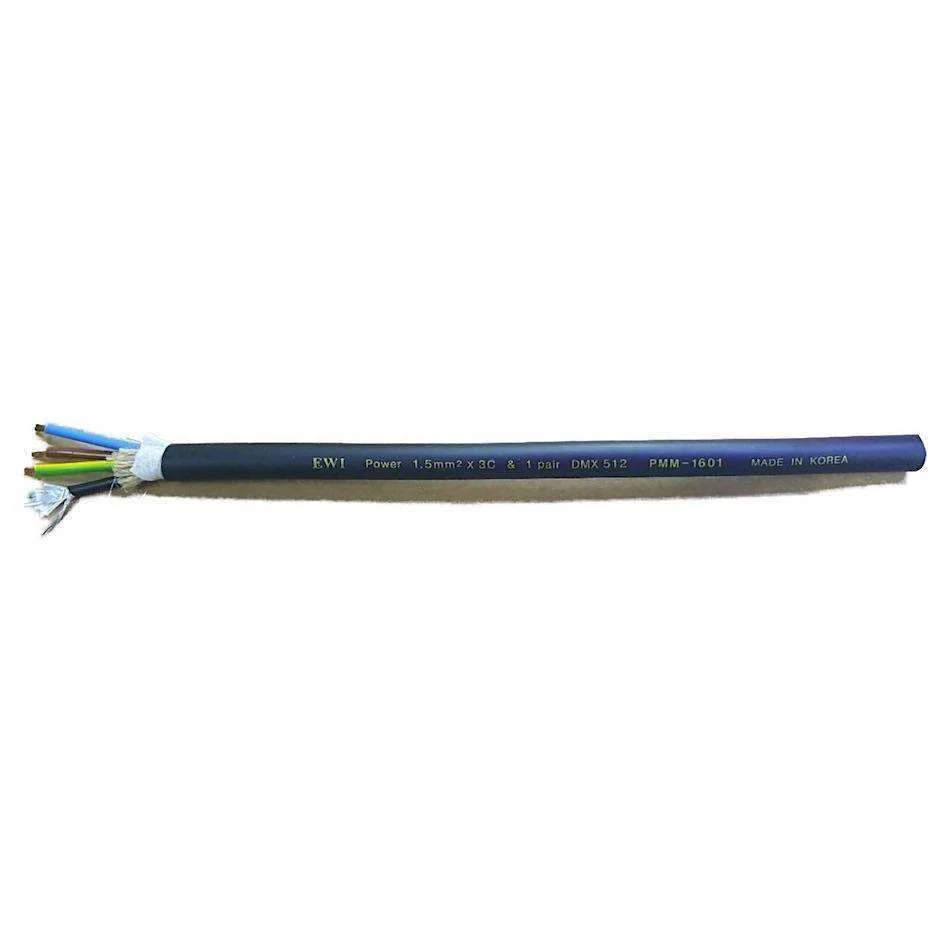

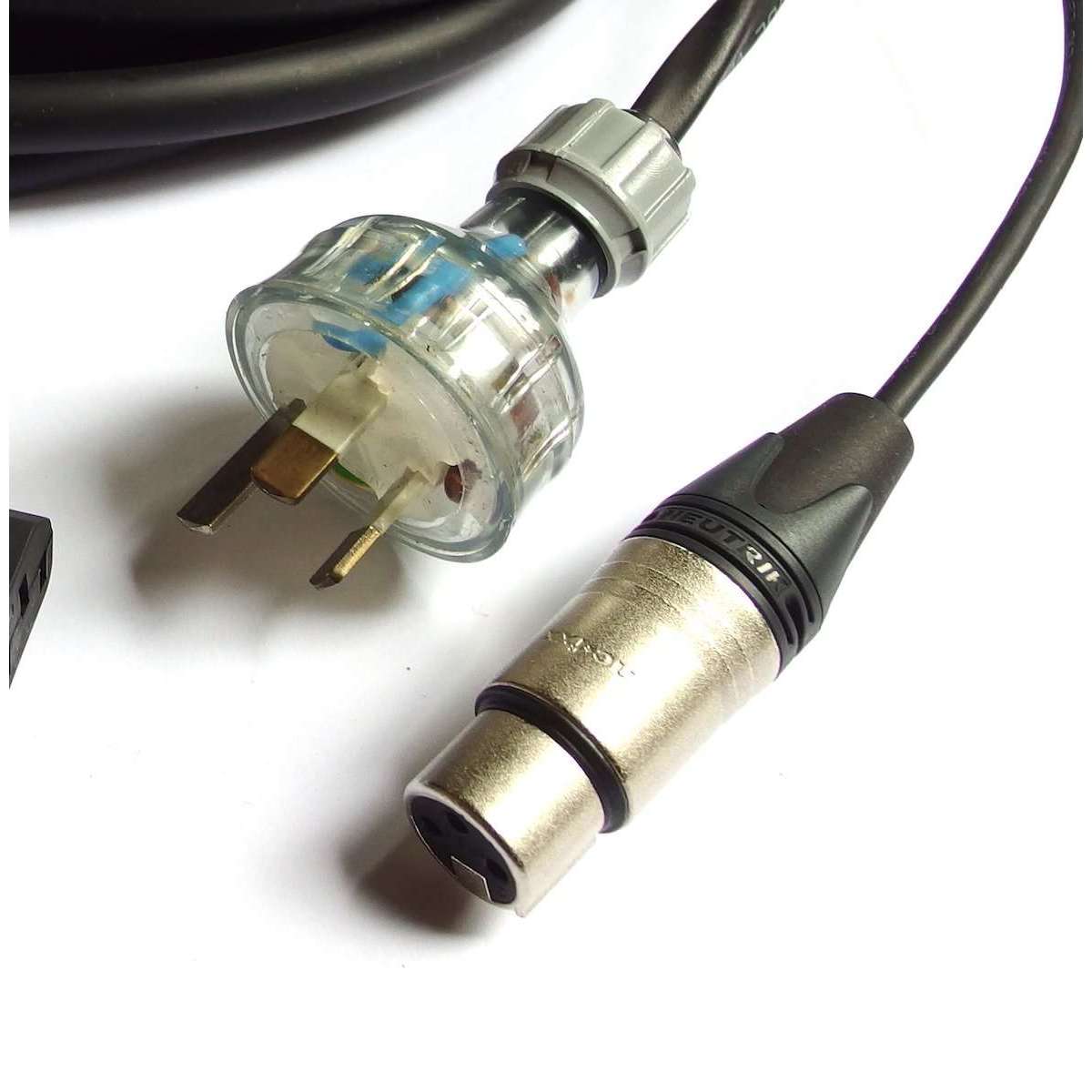

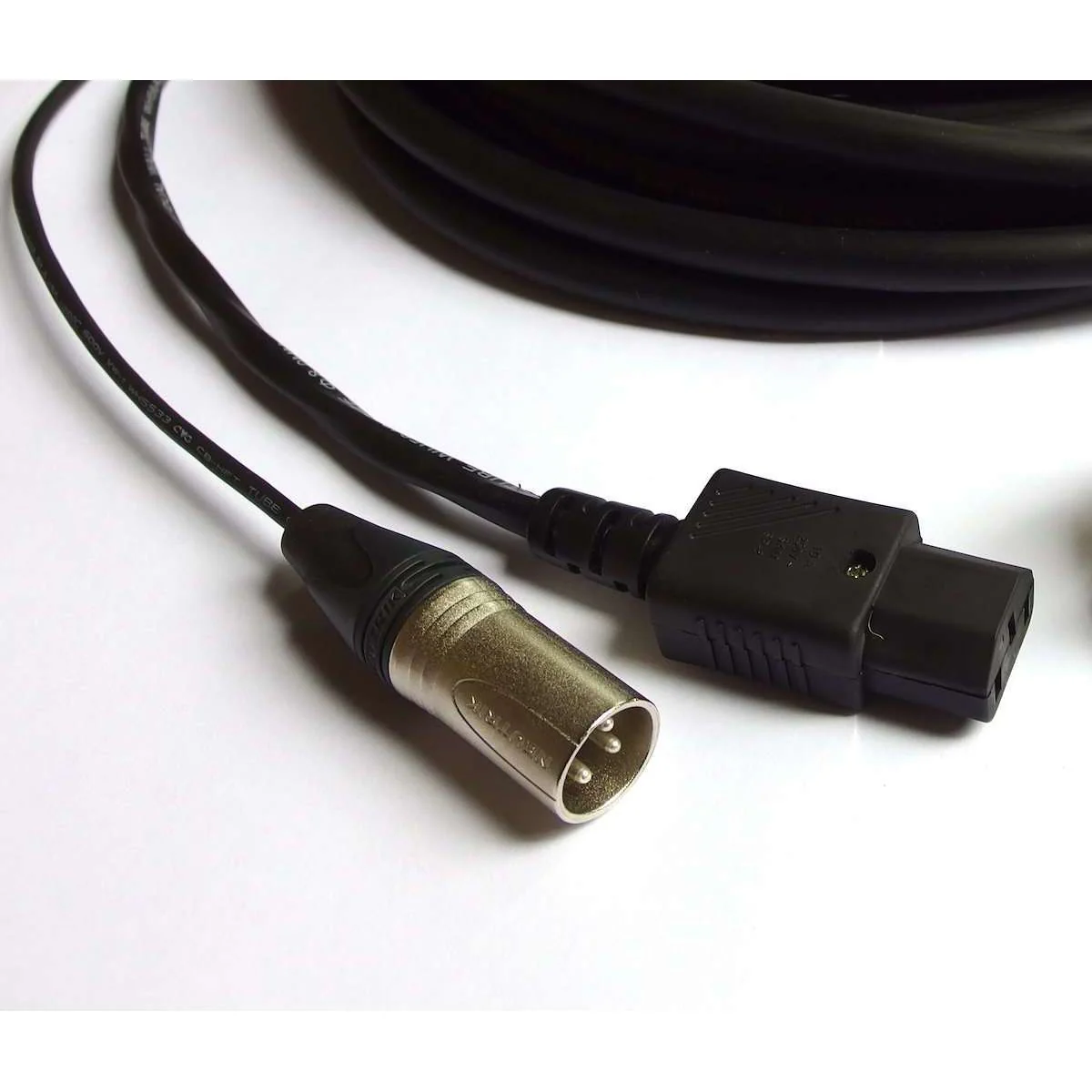

    Here's a great idea for powered speakers or DMX lighting fixtures! Quality made in South Korea EWI Signal / Power cable assembled here in Australia as ready to go power/signal combination cables, with at one end a genuine Neutrik?NC3FXX XLR 3-pole cable mount female socket & standard 240v male plug, and a Neutrik?NC3MXX XLR 3-pole cable mount male plug & IEC standard 3-pole cable mount socket at the other end. A velcro cable tie is included. Once you get these you are sure to wonder how you ever got by without them.

    Available in 2.5, 5, 10, 15 and 20 metre lengths.?

    NB. 10 metre version pictured for display purposes

    Warranty: 5 Years

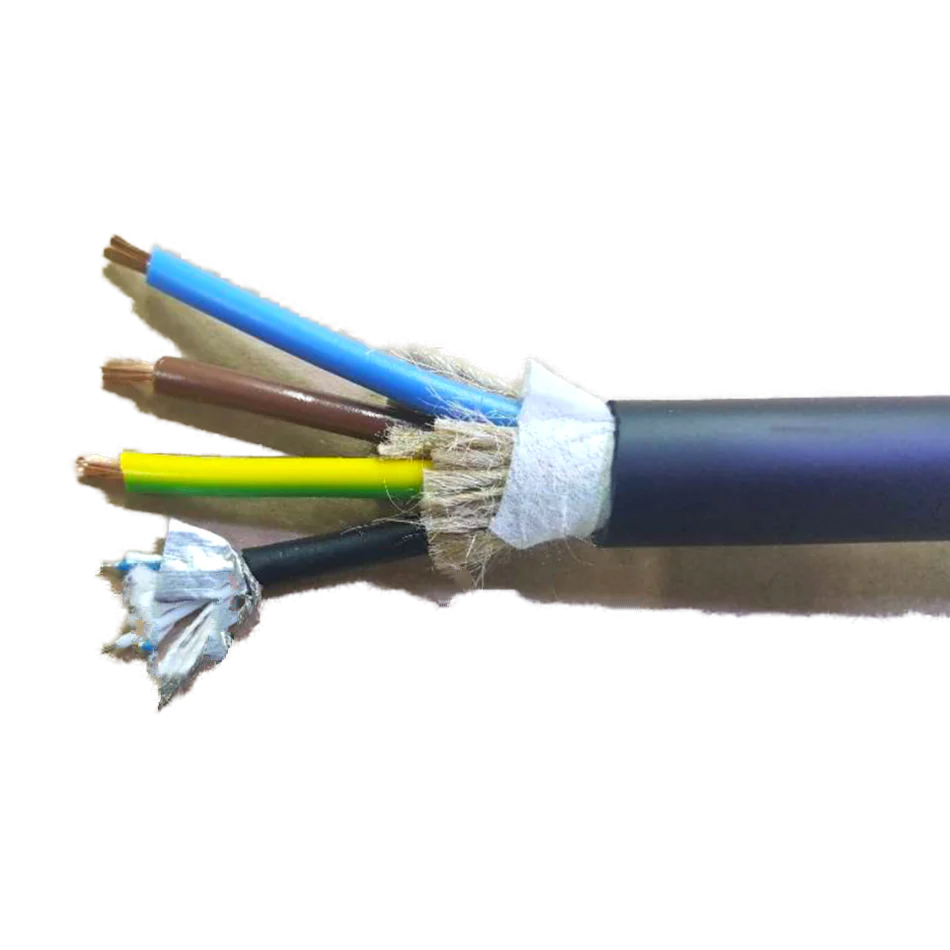

    Cable Specs

    CONSTRUCTION

    Power: 1.5mm2 X 3C ( 60/0.18A )

    Insulation: PVC 3.0mm in dia - BROWN, BLUE, GREEN/YLW

    DMX: 0.14mm2 X 2C ( 28/0.08TA, 26AWG )

    Insulation: PE 0.95mm in dia - BLUE, WHITE

    Shield: 100% spiral, ( 48/0.12TA )

    Individual jacket PVC 3.25mm in diameter

    Diameter: 10.7mm?

    Weight: 15.3kg?per 100 Metres

    ELECTRICAL DATA

    Capac. cond./cond. Per 1 m: 52pF

    Capac. cond./shield. Per 1 m: 91pF

    Cond. Resistance per 1km: < 85��

    Insulat. Resistance per 1km: > 100 M��

    Surge impedance:?110 �� �� 5%
